TROX 3Axis 65 CNC
Tube Bending Machine

TROX 3Axis 65 CNC
Tube Bending Machine

Ability to import drawings with Solidworks Program
Fully automatic and manual mode operation with interactive PLC control system
Multiple language options
Ability to see products in 3D
Ability to see products in 3D Pipe Collision Simulation
Automatic pipe length calculation
Conforms to CE Norms
Ability to see errors on the screen
Safety warning system
Easy to use thanks to Livmak Interface

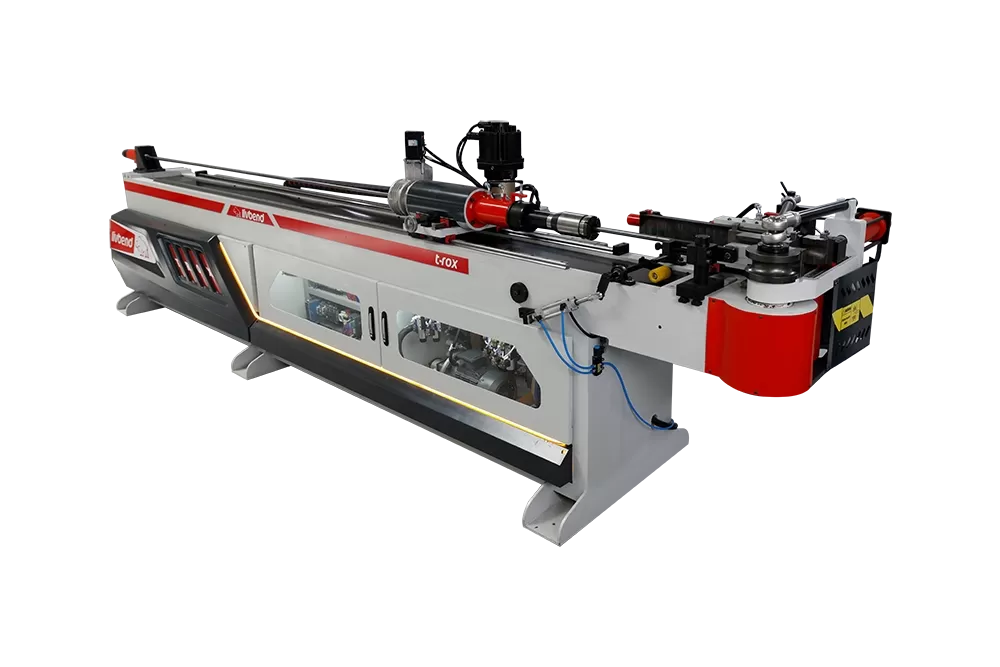

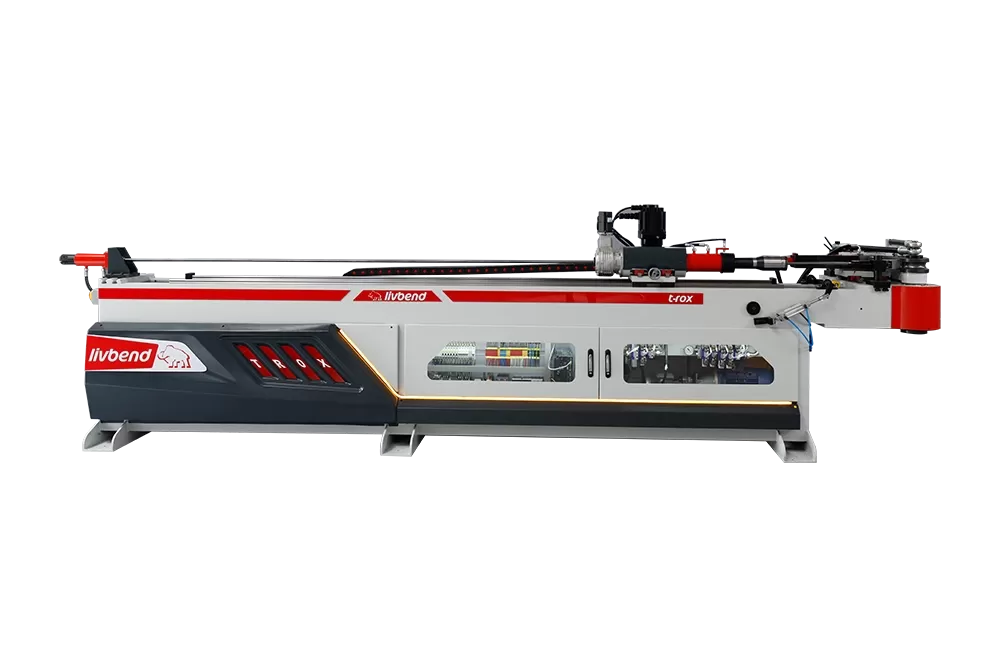

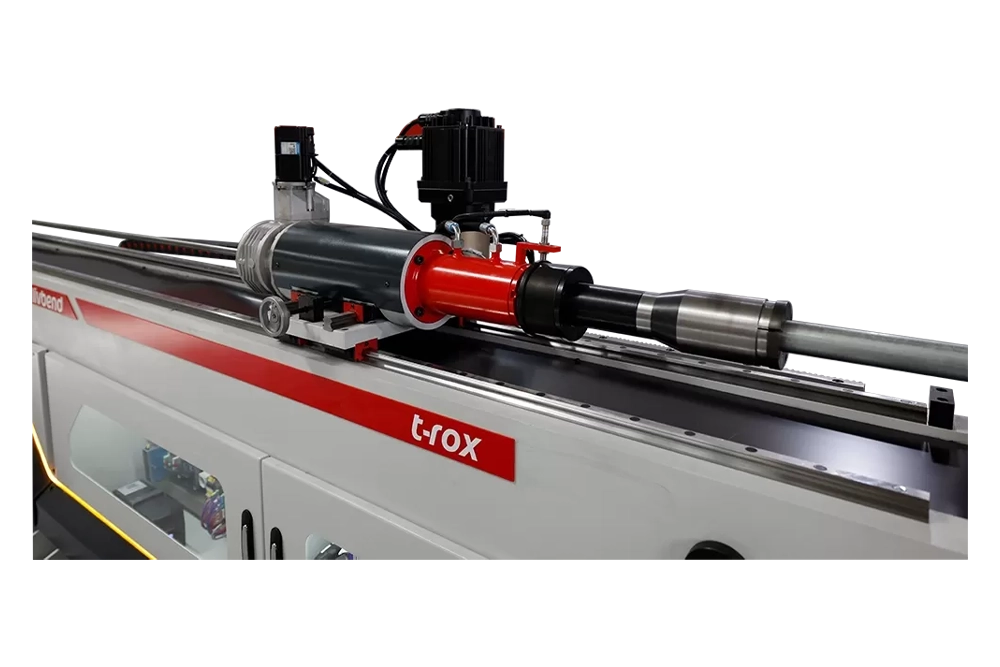

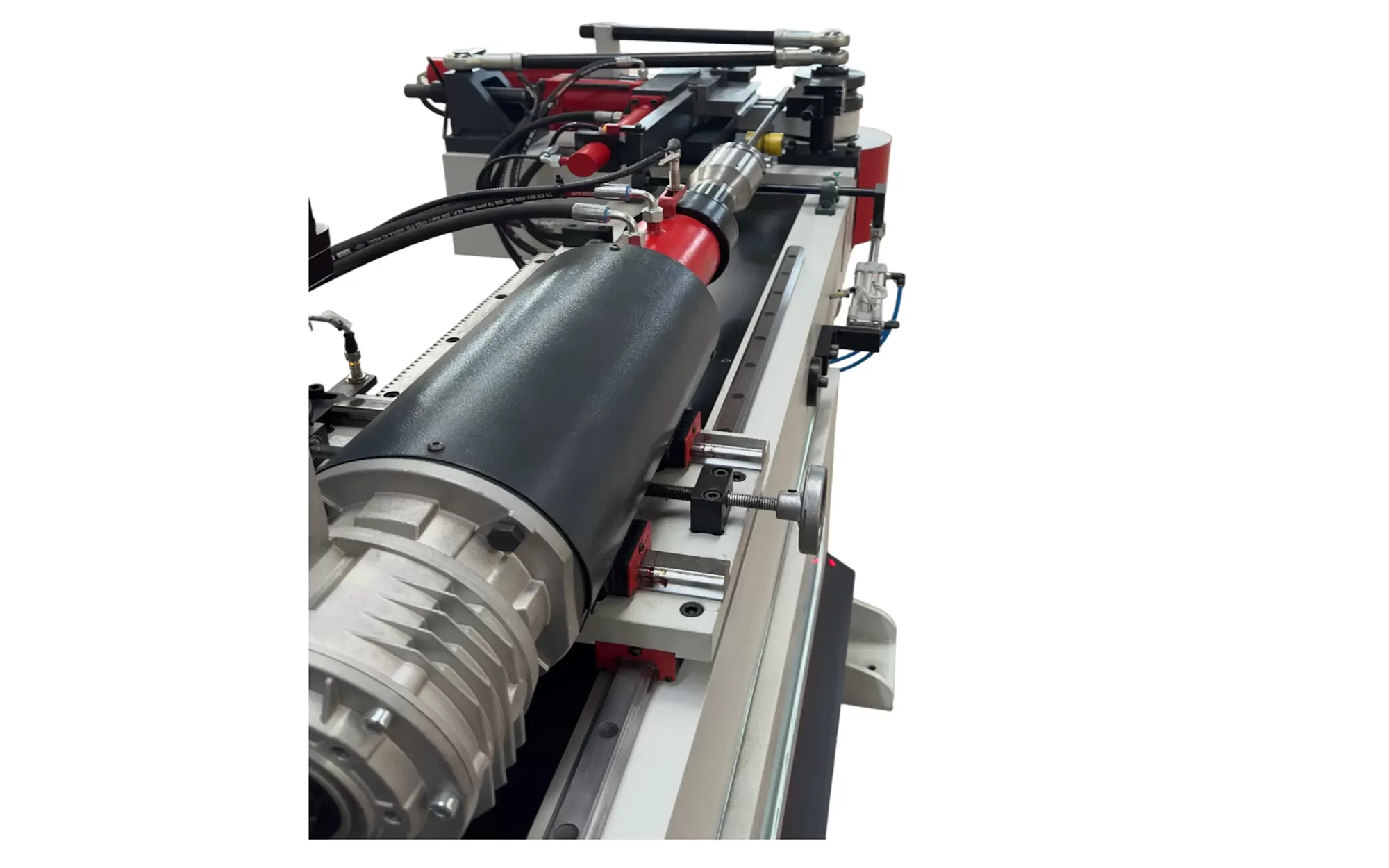

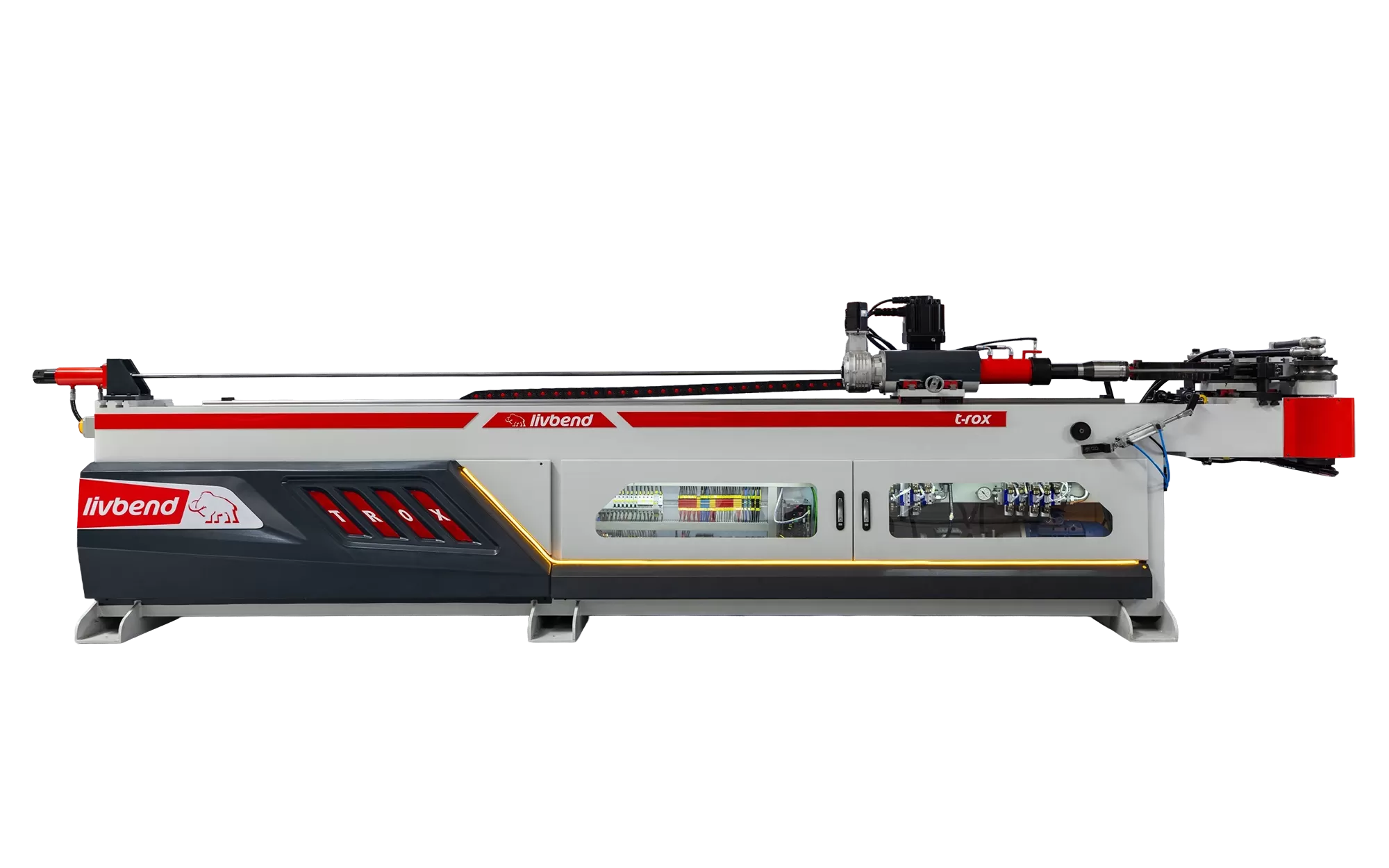

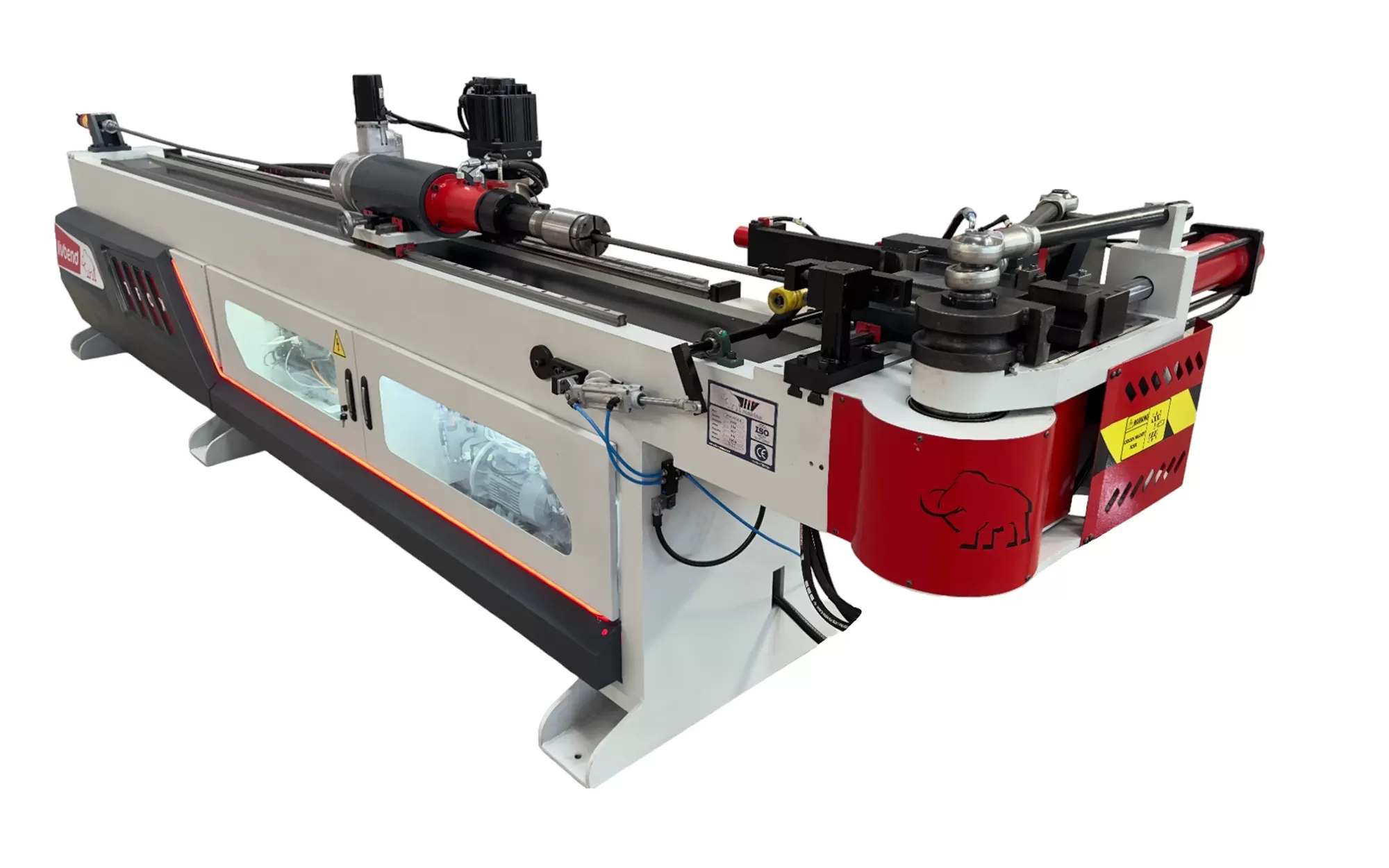

3 Axis 65 CNC Mandrel Tube Bending Machine TROX

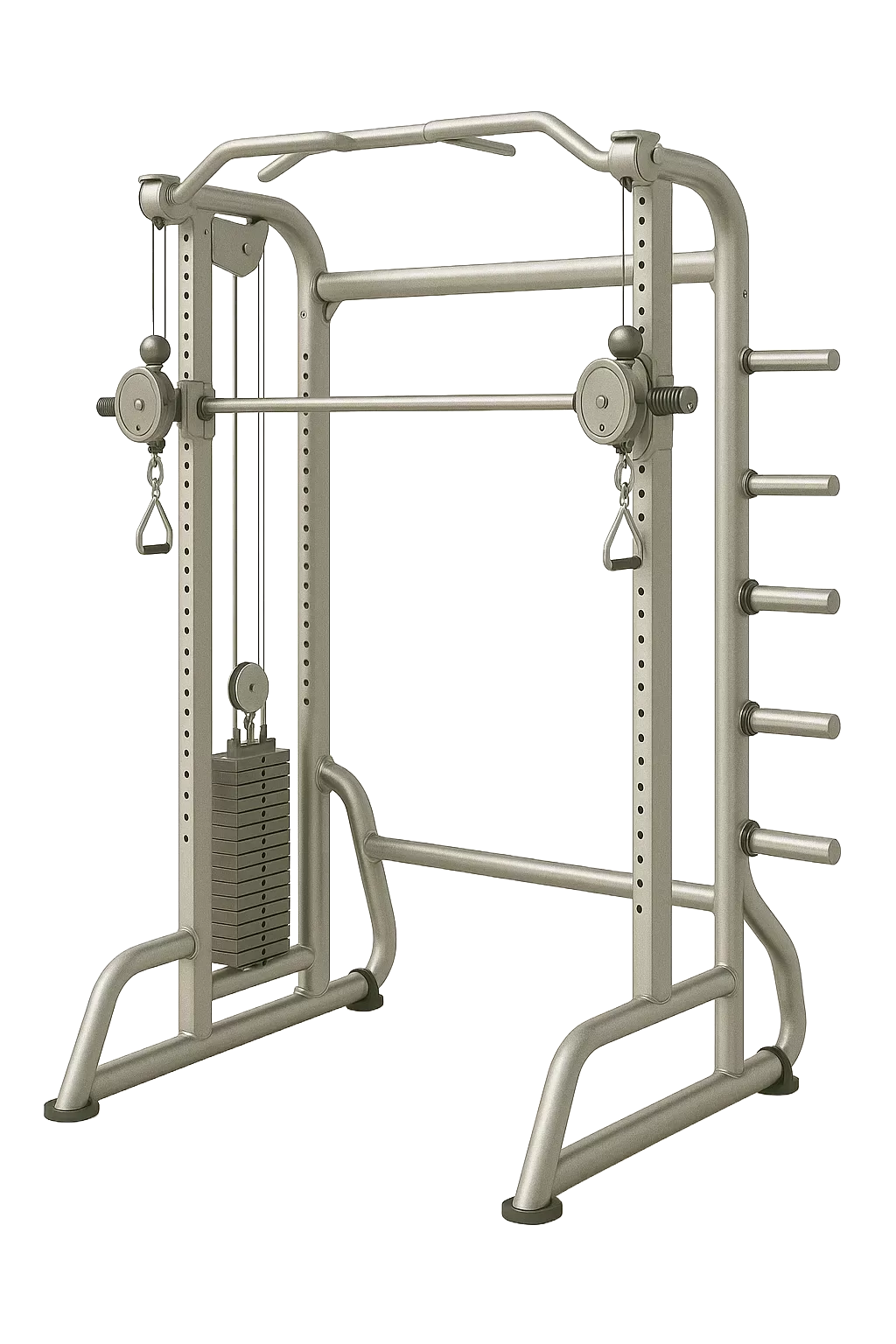

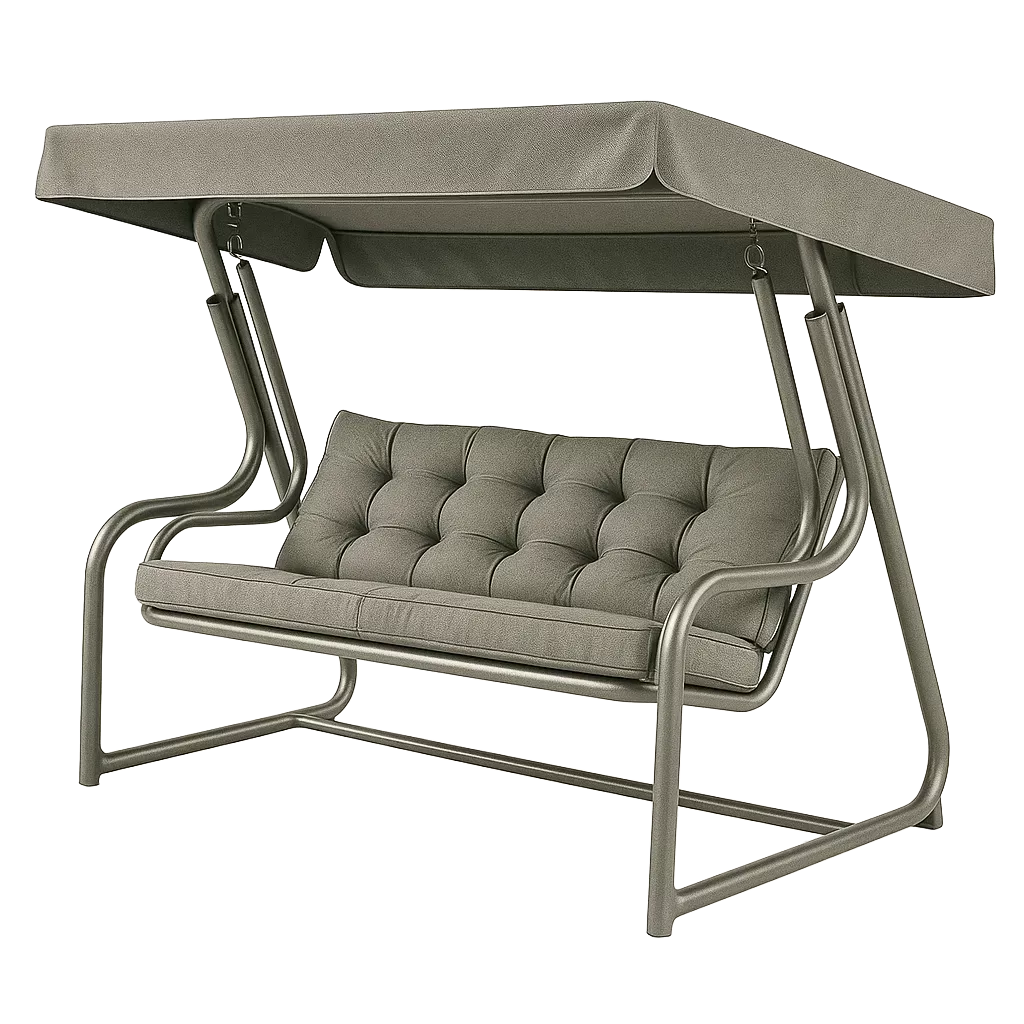

Liv Makina's most powerful machine is the CNC mandrel pipe bending machine that can bend pipes up to 65 mm with 3 axes for pipe and profile bending works of Shipyard Ship Industry, Thermal power plants, Park garden furniture, Fitness Sports equipment, Exhaust Industry, Sectors.

What is difficult is easy thanks to the hydraulic bending.

Technical Specifications	TROX 3Axis 65 CNC
Max Bending Capacity	Ø65 mm x 2 mm
Min / Max Mold Size	90/250 mm
Material Process Length	4000 mm
Machine Sizes	5500x1750x1750 mm
Total Engine Power	15 Hp
Machine weight	3 Tons
