TWIN Double NC
Pipe Bending Machine

TWIN Double NC
Pipe Bending Machine

Ability to Bend at Different Angles on Right and Left Heads
Multiple Language Options
Conforms to CE Norms
Ability to Bend 2 or 3 Pipe Profiles at the Same Time
Ability to See Daily and Total Production Quantity on the Screen
Mold Production According to User Needs

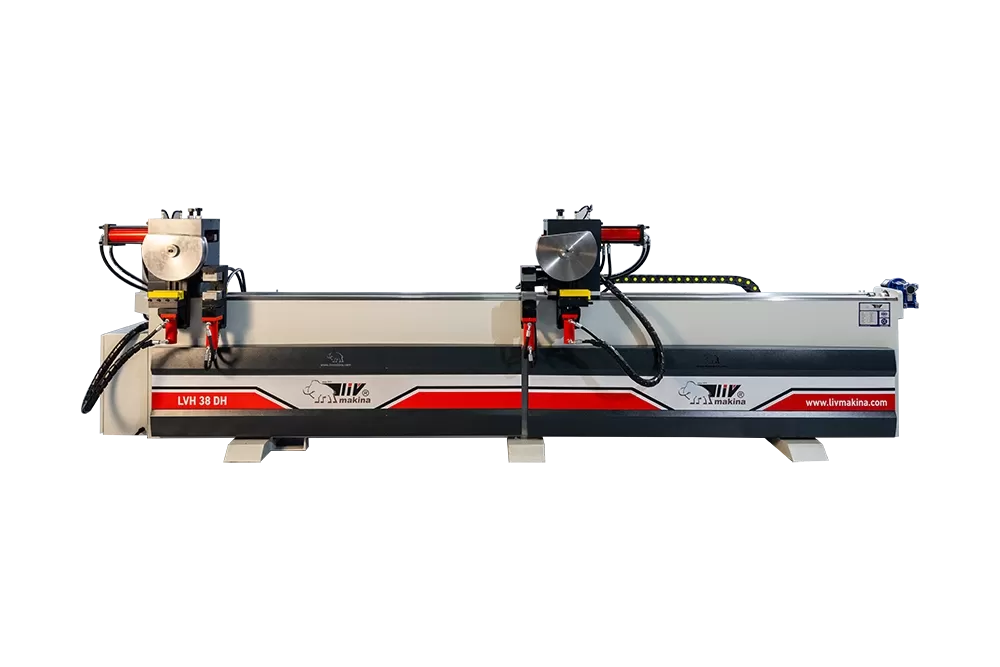

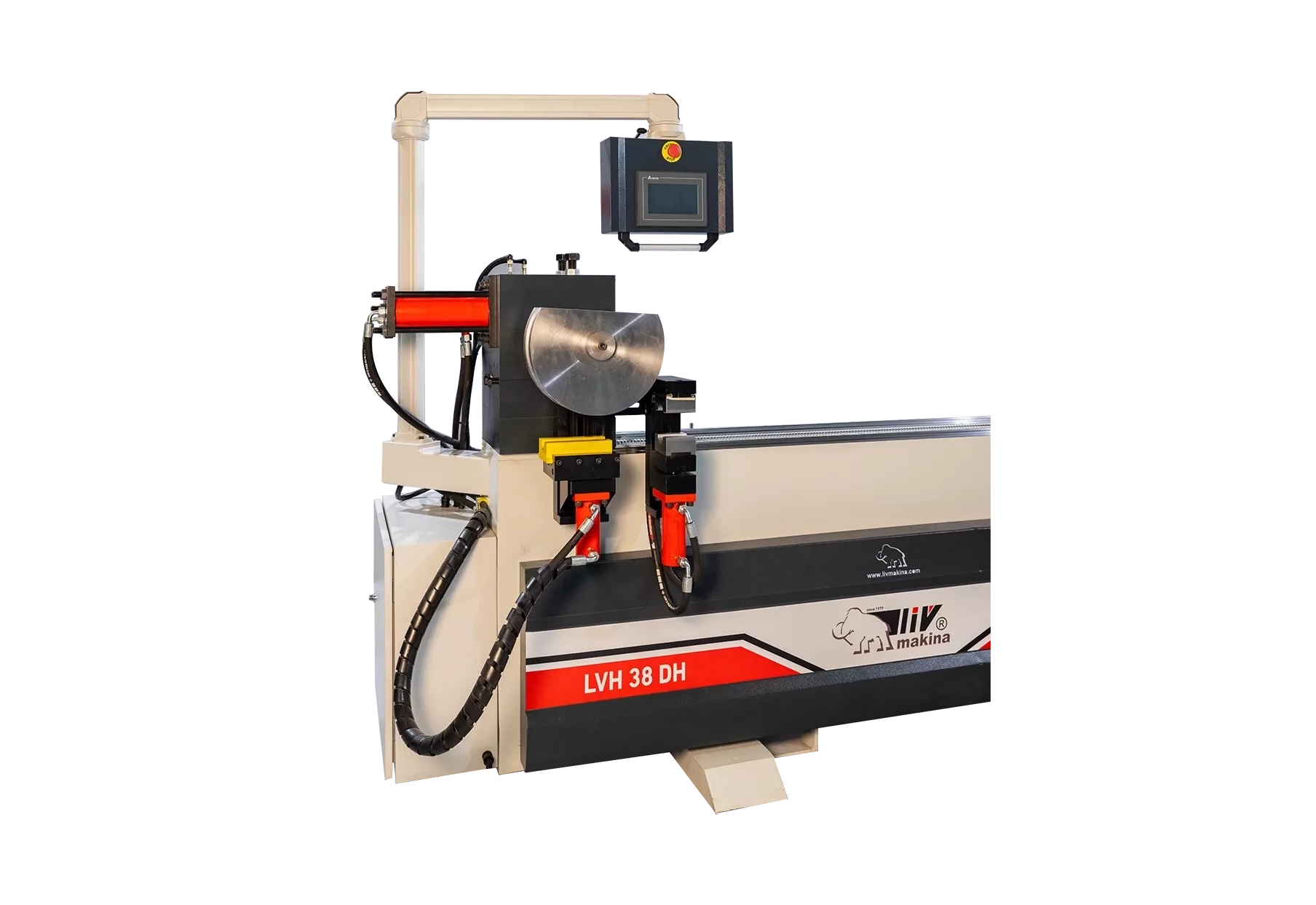

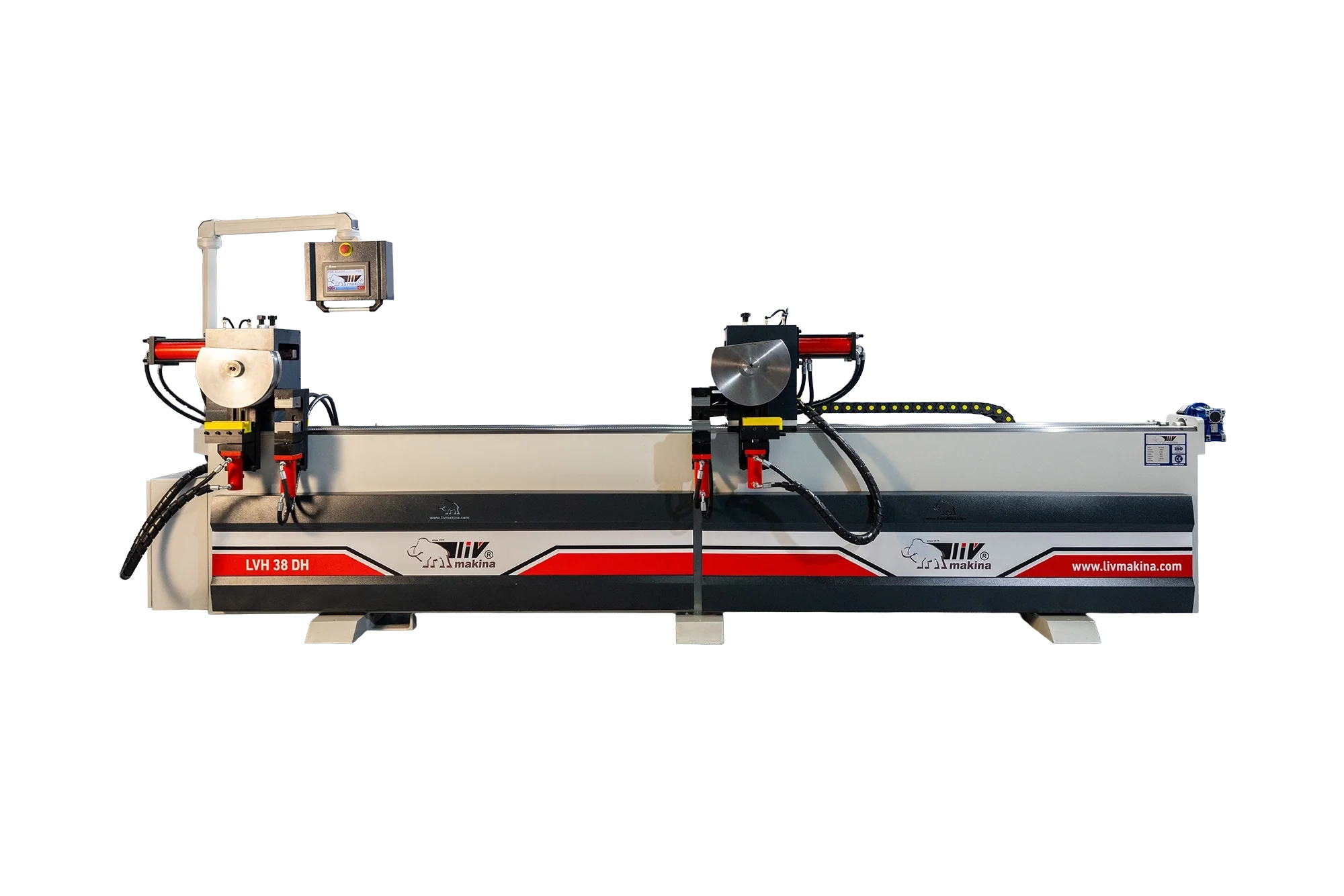

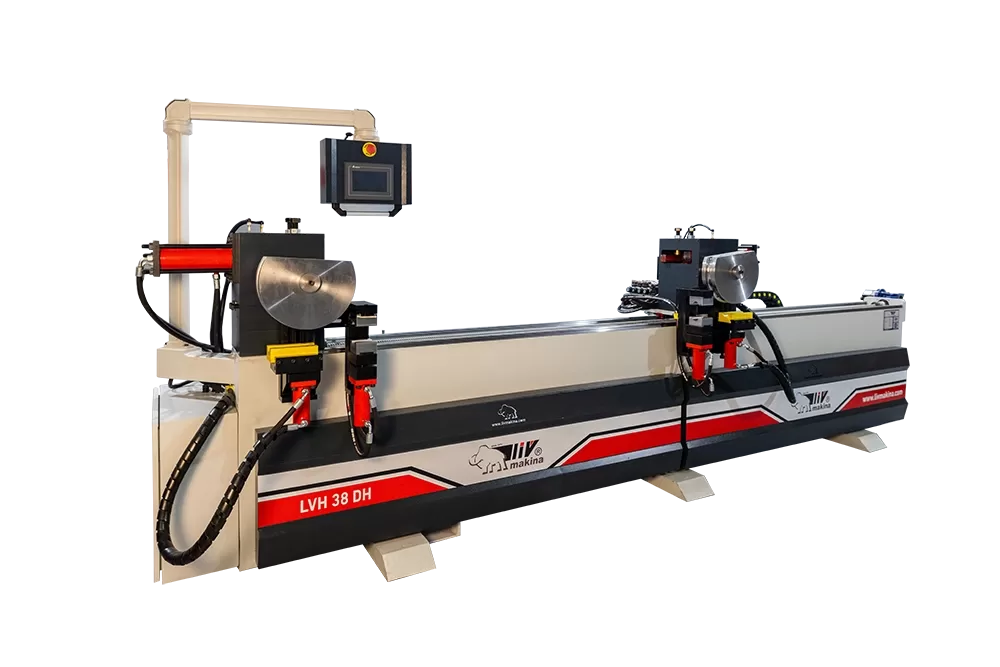

NC Double Head Tube and Profile Bending Machine (TWIN Double 38 NC)

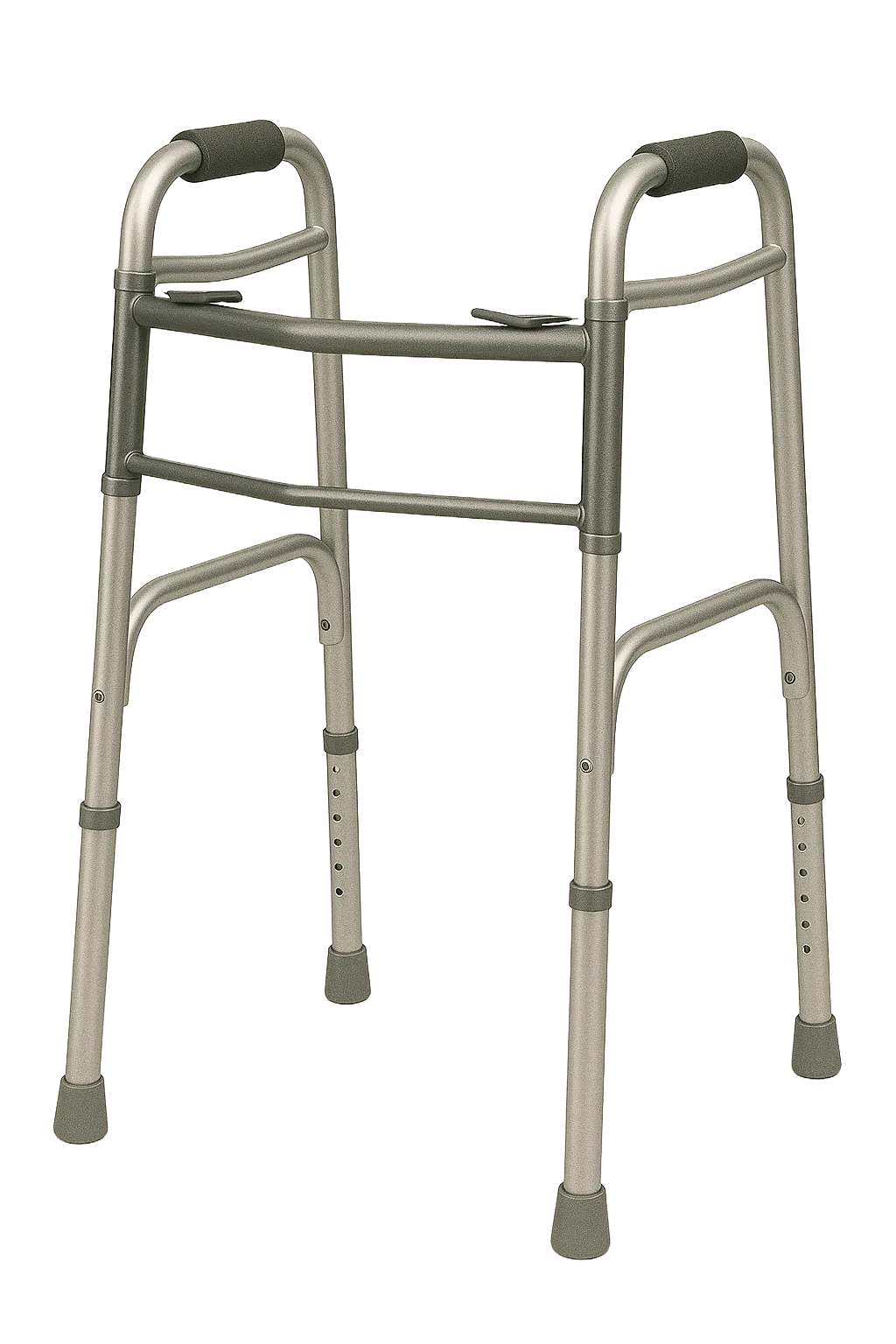

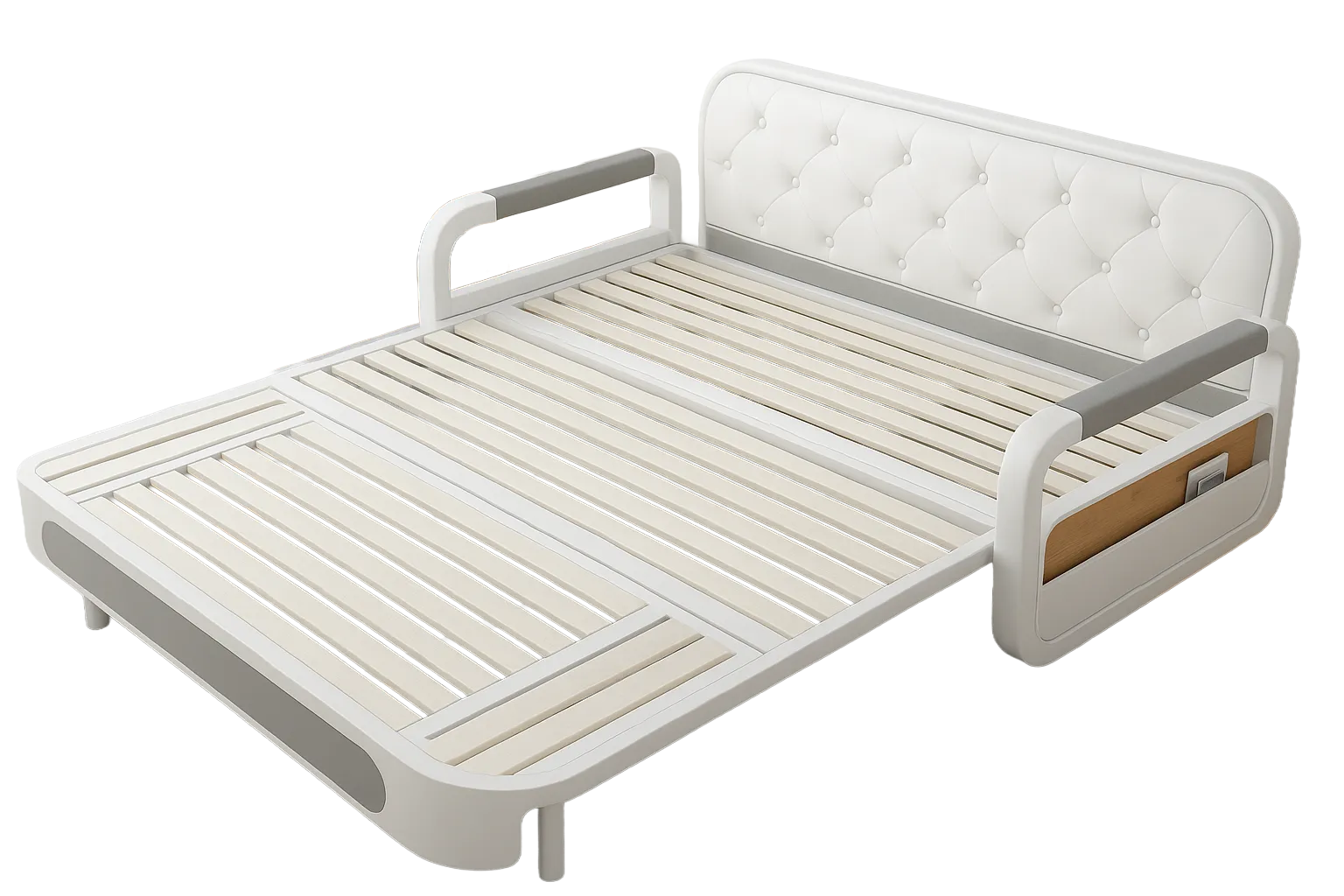

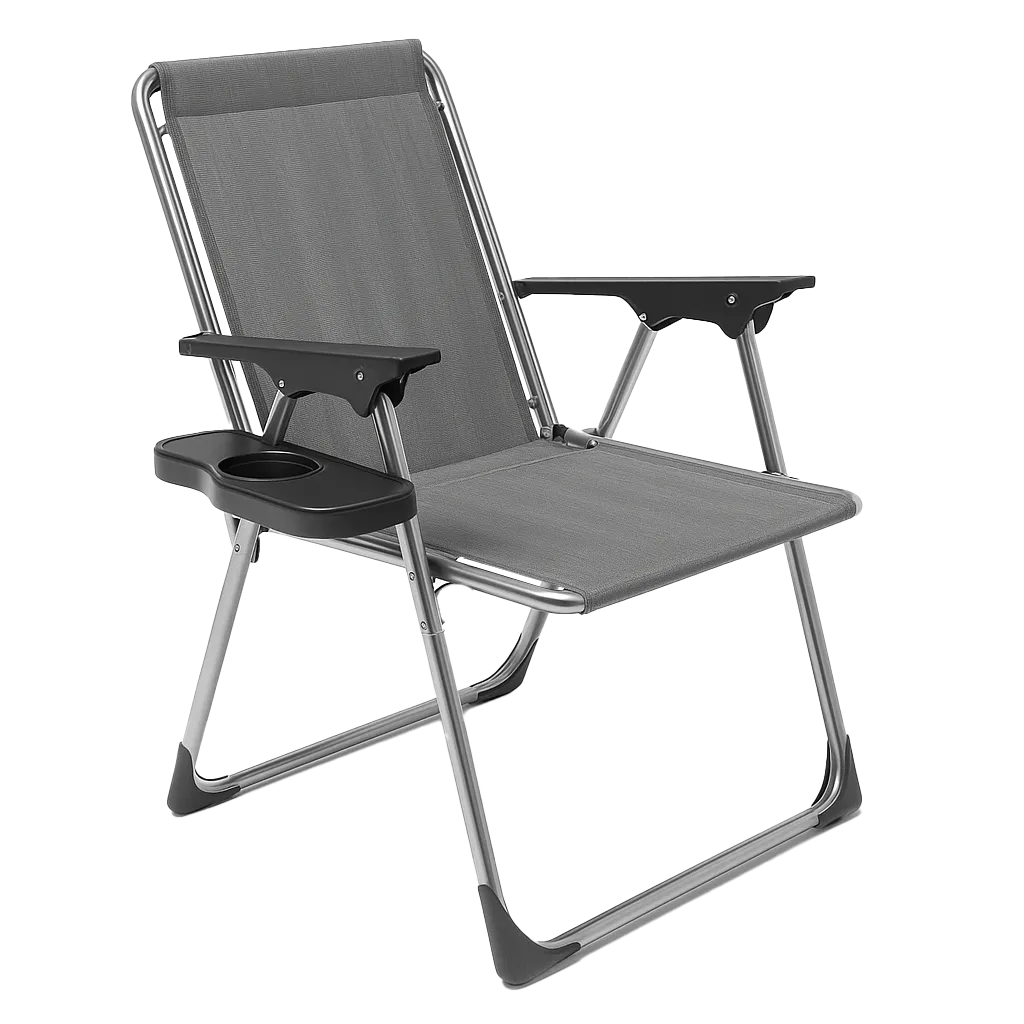

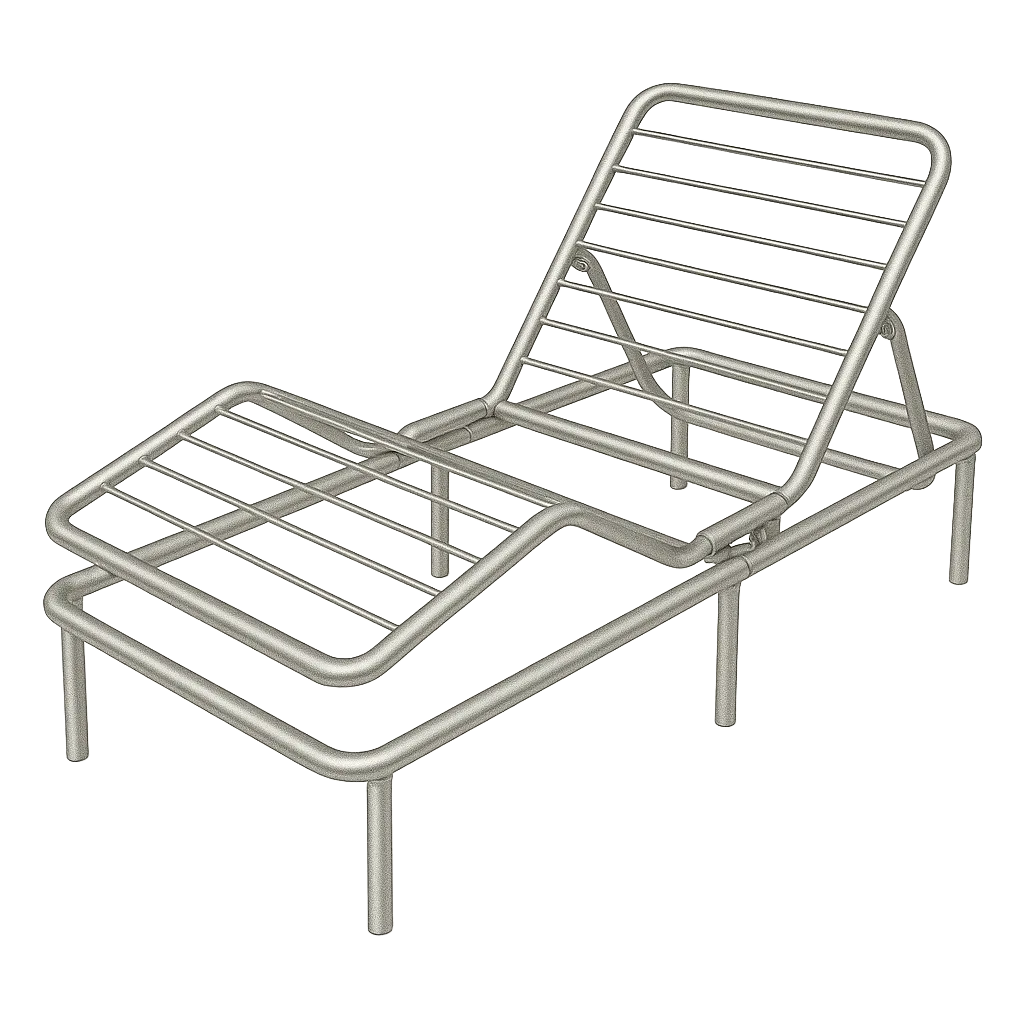

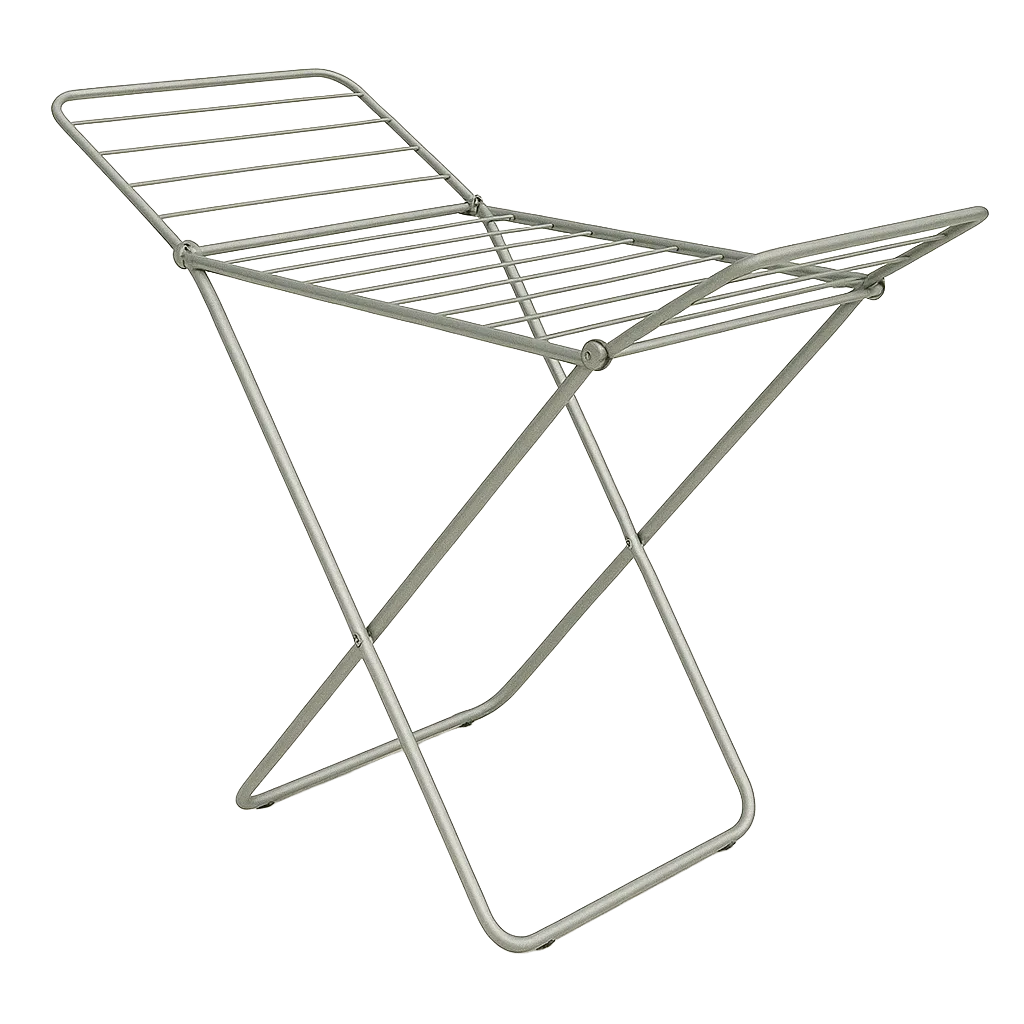

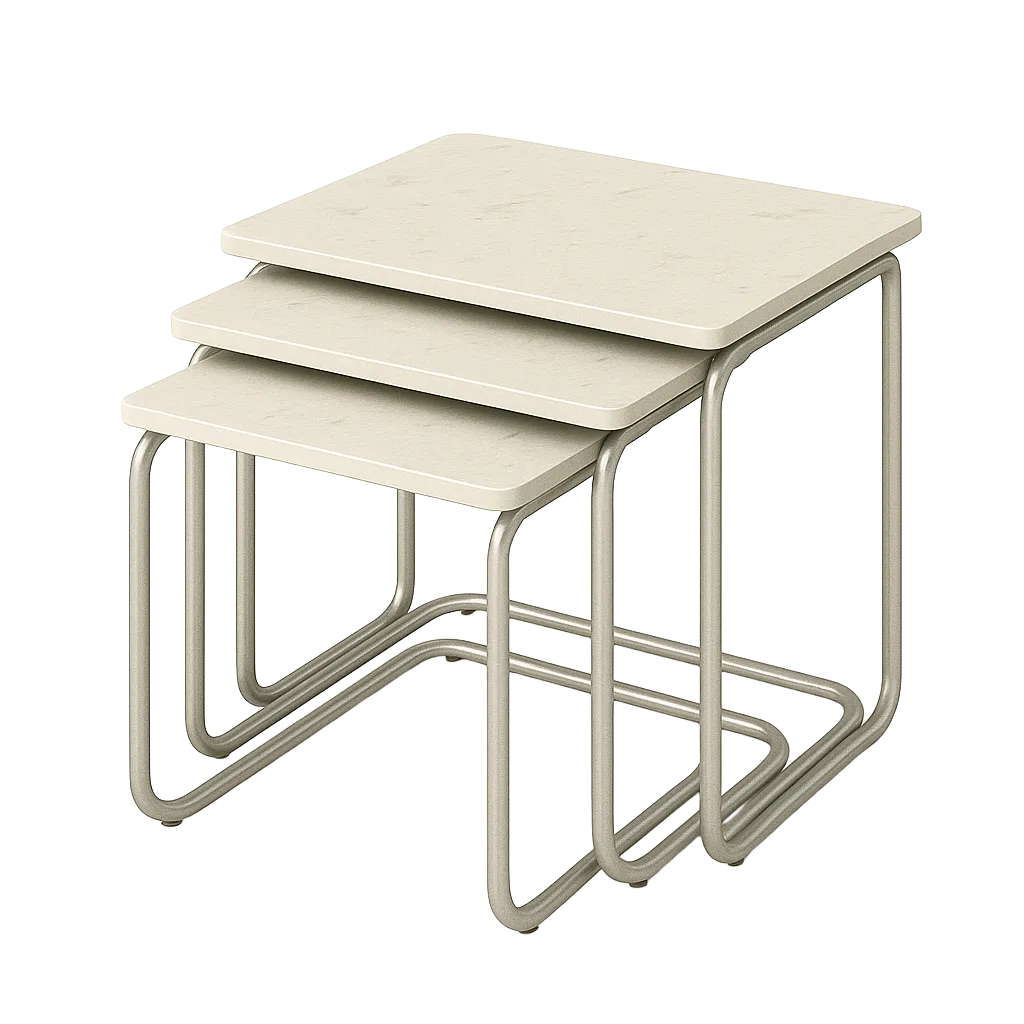

It is one of our most referenced machines used in pipe and profile bending systems that are bent on both sides, such as Police Barriers, Clothes Dryers, Bases, Sofas. In our machine with Servo Motor, measurement is done on the screen without human touch.

Thanks to the memory saved in our machine with PLC system and touch screen, switching to new products is very easy.

Technical Specifications	TWIN Double 38 NC
Max Bending Capacity	Ø38 mm x 2 mm
Min / Max Mold Size	90/220 mm
Material Process Length	350-2100 mm
Machine Sizes	3000x1500x1500 mm
Maximum Bending Angle	120°
Total Engine Power	5 Hp
Machine weight	1,2 Tons
