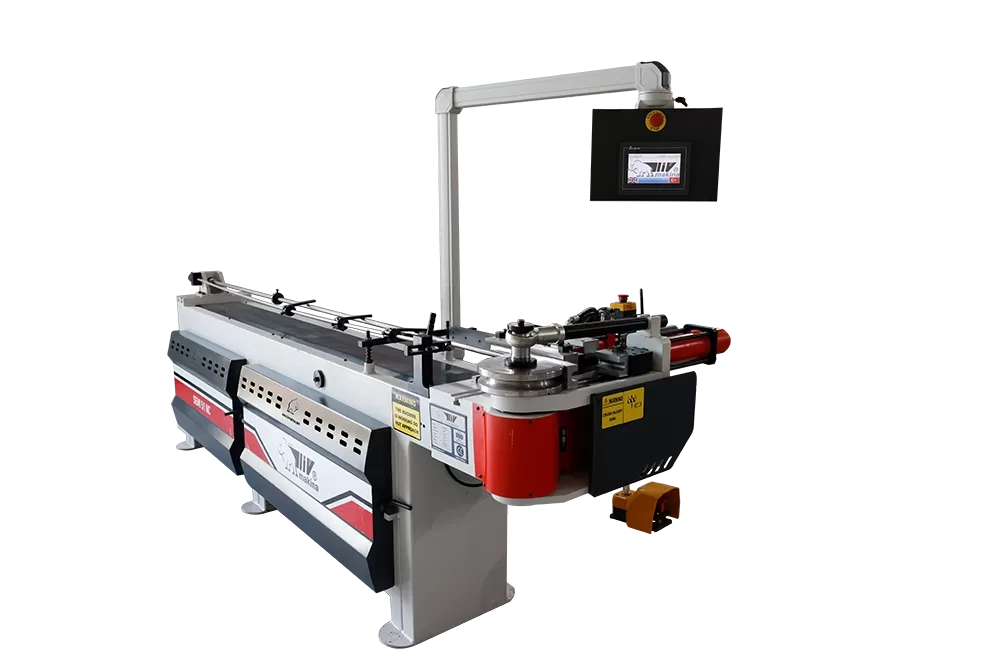

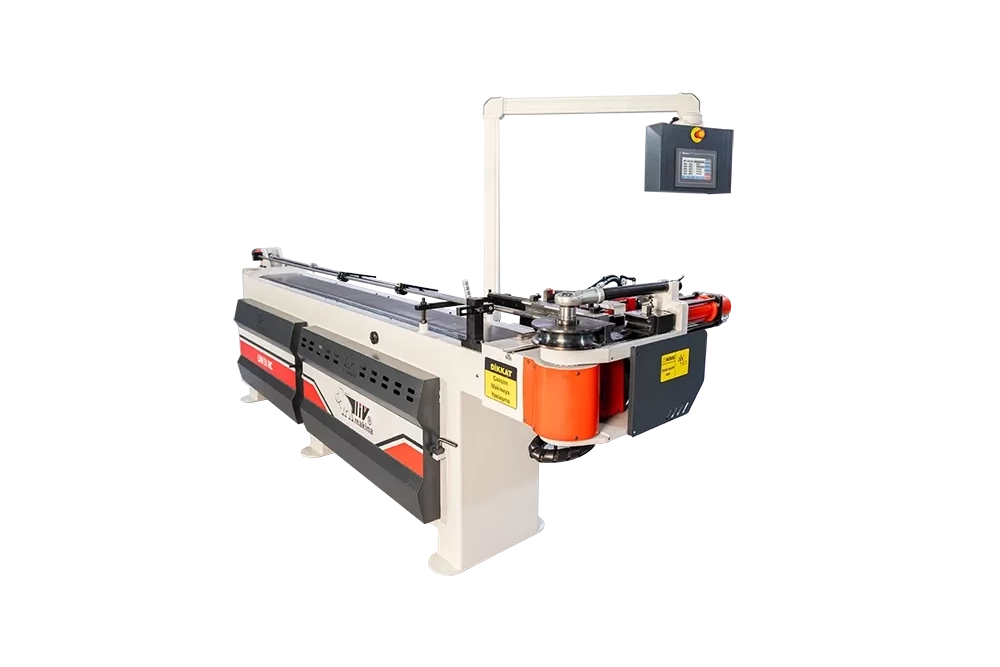

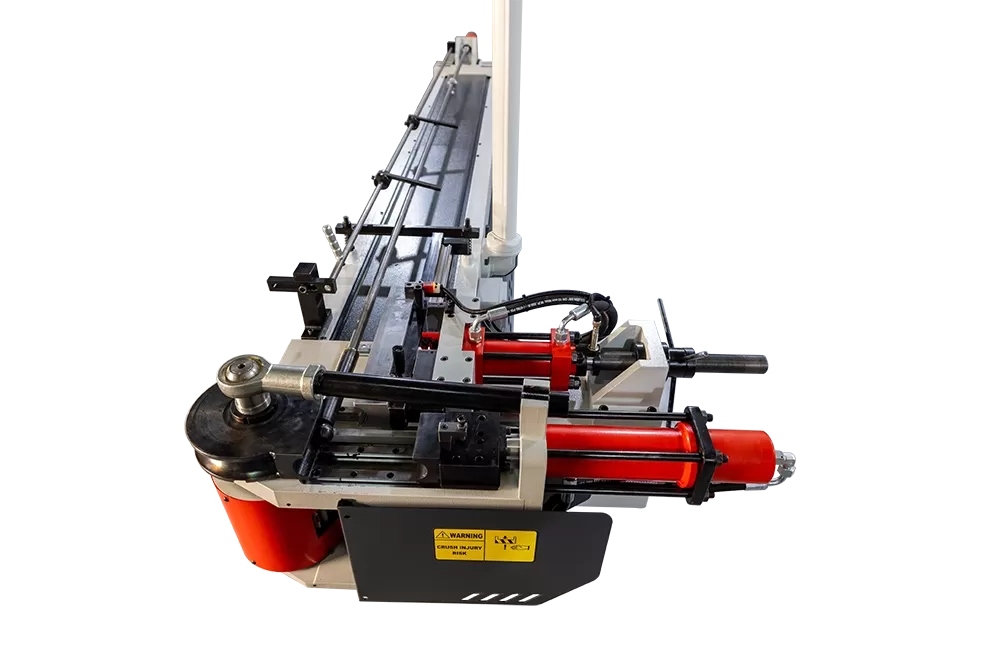

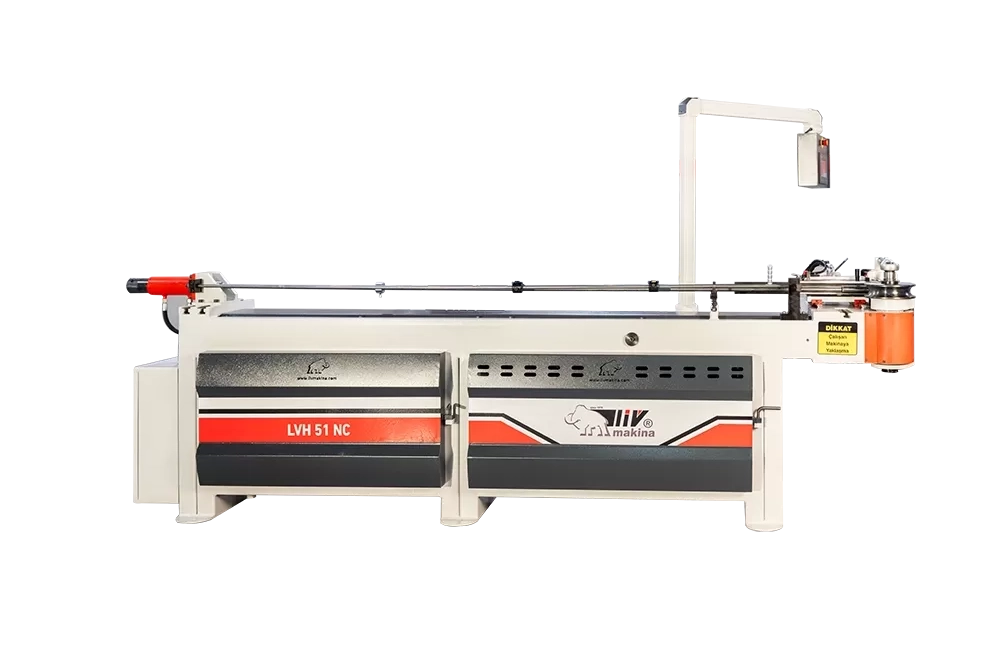

51 Nc Hydraulic Semi Automatic Mandrel Tube Bending Machine - SEMI 51 NC

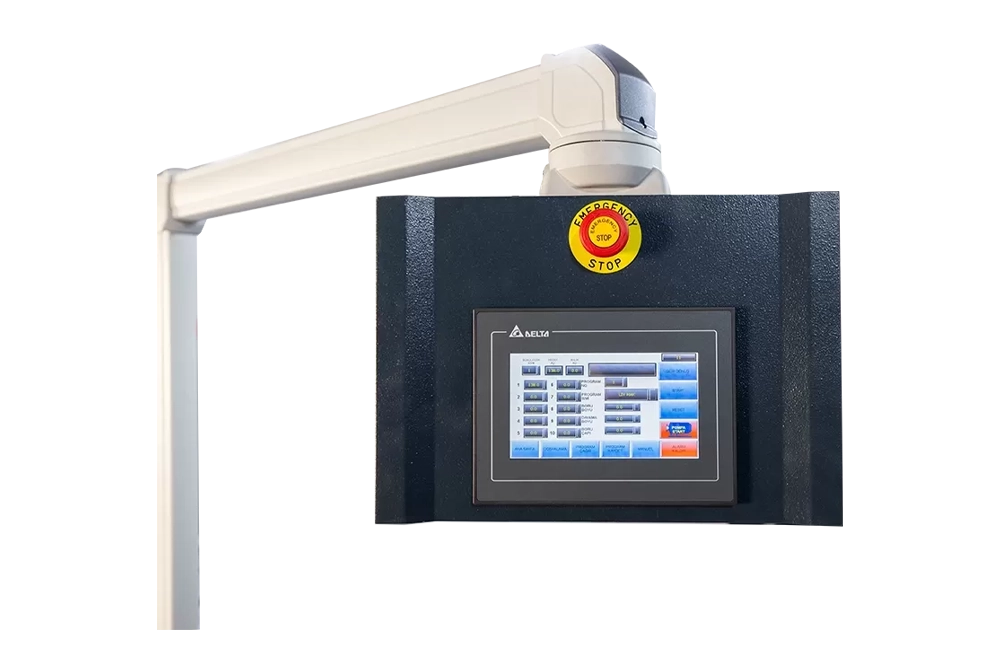

Our NC series pipe bending machine is equipped with an NC control unit with Touch Screen Interface. The Livmak NC series pipe bender combines practical operation, high pipe bending accuracy and cost-effectiveness. It is a practical semi-automatic solution for small and medium-sized productions. It is equipped with up to 10 programmable bending angles.

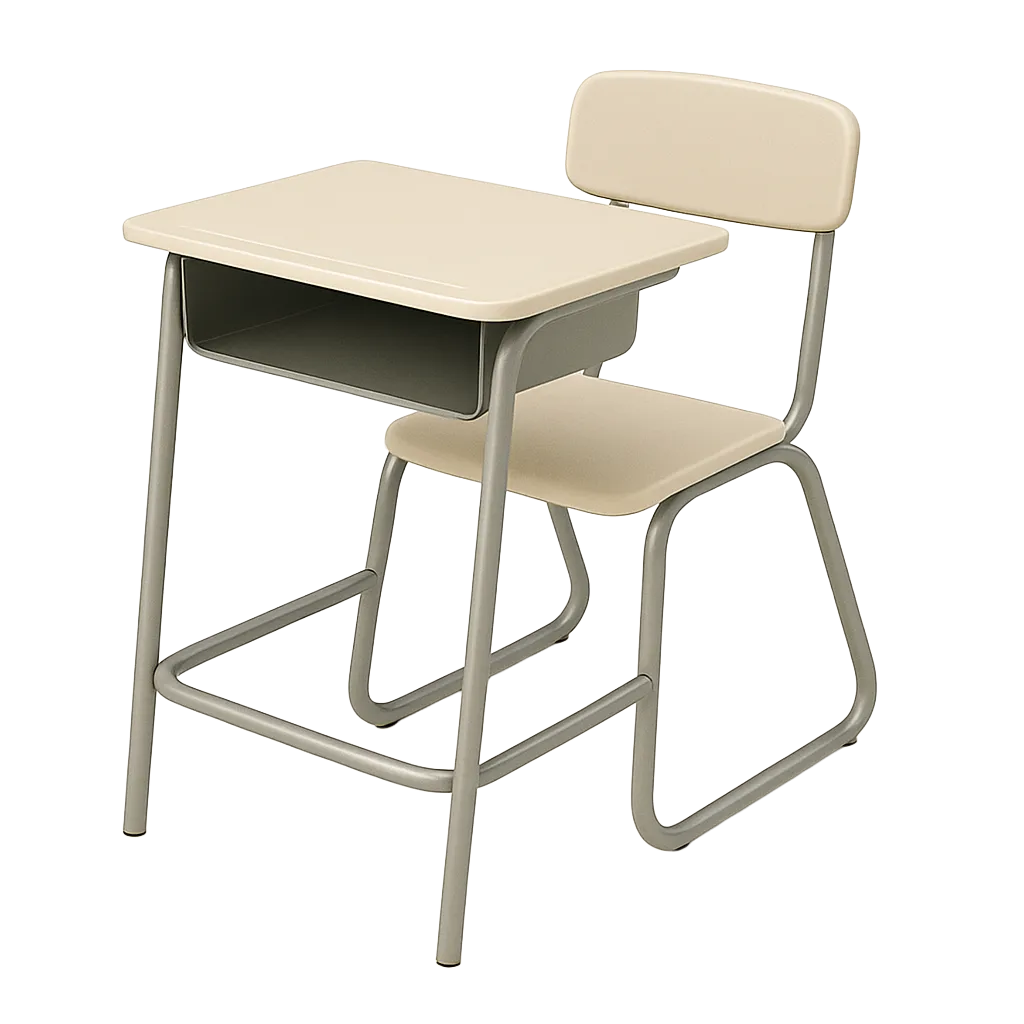

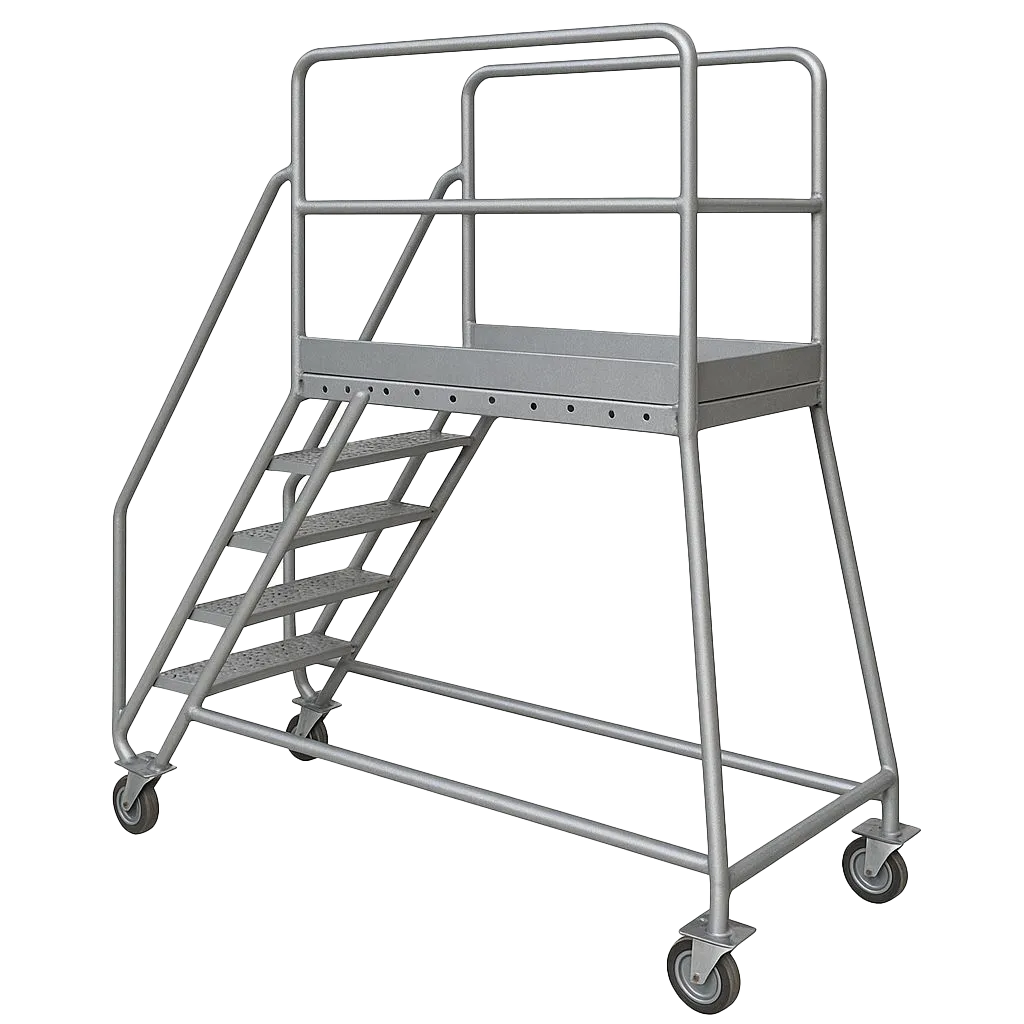

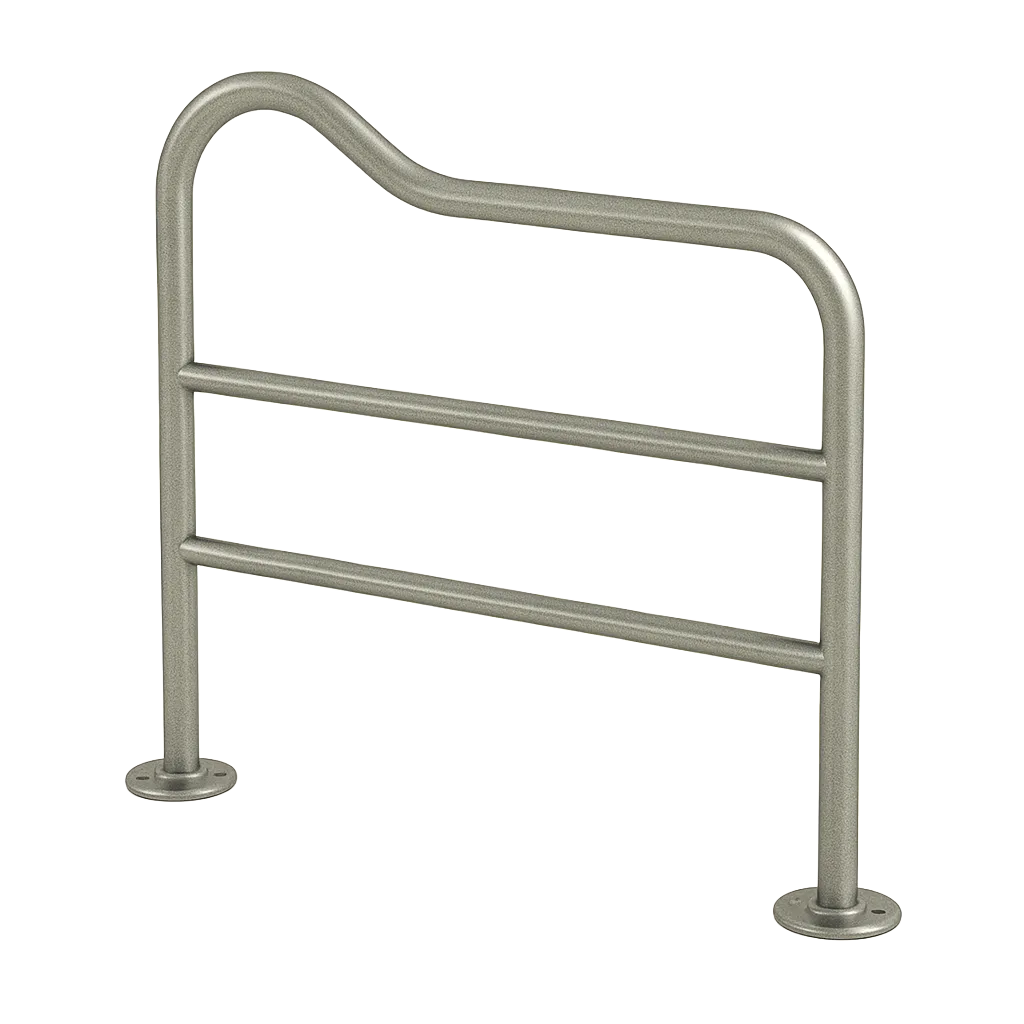

Our machine, which has the ability to bend oval and ellipse pipes, serves in many sectors such as School Desks, Chairs, Stainless Pipe Profile Elevator Handles, Scaffolding Systems in many continents such as Europe, Asia and America.
Our NC series pipe bending machine is equipped with an NC control unit with Touch Screen Interface. The Livmak NC series pipe bender combines practical operation, high pipe bending accuracy and cost-effectiveness. It is a practical semi-automatic solution for small and medium-sized productions. It is equipped with up to 10 programmable bending angles.
Our machine, which has the ability to bend oval and ellipse pipes, serves in many sectors such as School Desks, Chairs, Stainless Pipe Profile Elevator Handles, Scaffolding Systems in many continents such as Europe, Asia and America.
| Technical Specifications | SEMI 51 NC |
|---|---|
| Max Bending Capacity | Ø51 mm x 2 mm |
| Min / Max Mold Size | 60/250 mm |
| Material Process Length | 3000 mm |
| Machine Sizes | 3500x1500x1500 mm |
| Total Engine Power | 5 Hp |
| Machine weight | 1,2 Tons |
