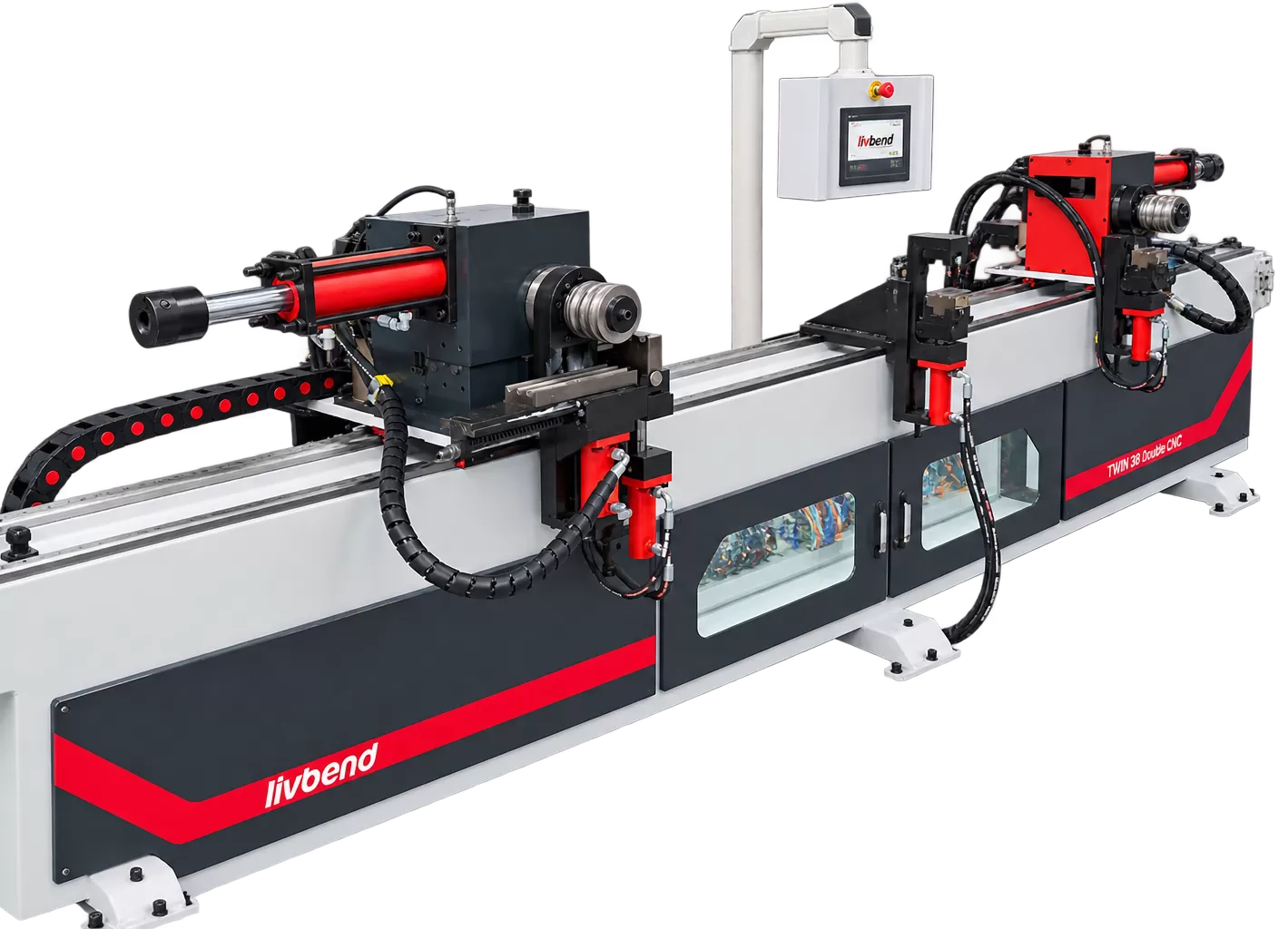

TWIN Double CNC
Tube Bending Machine

TWIN Double CNC
Tube Bending Machine

Double Head Independent Movement
Multiple Language Options
Conforms to CE Norms
Ability to Bend 2 or 3 Pipes at the Same Time
Ability to See Daily and Total Production Quantity on the Screen
Mold Production According to User Needs
Fixed Clamp Between Heads

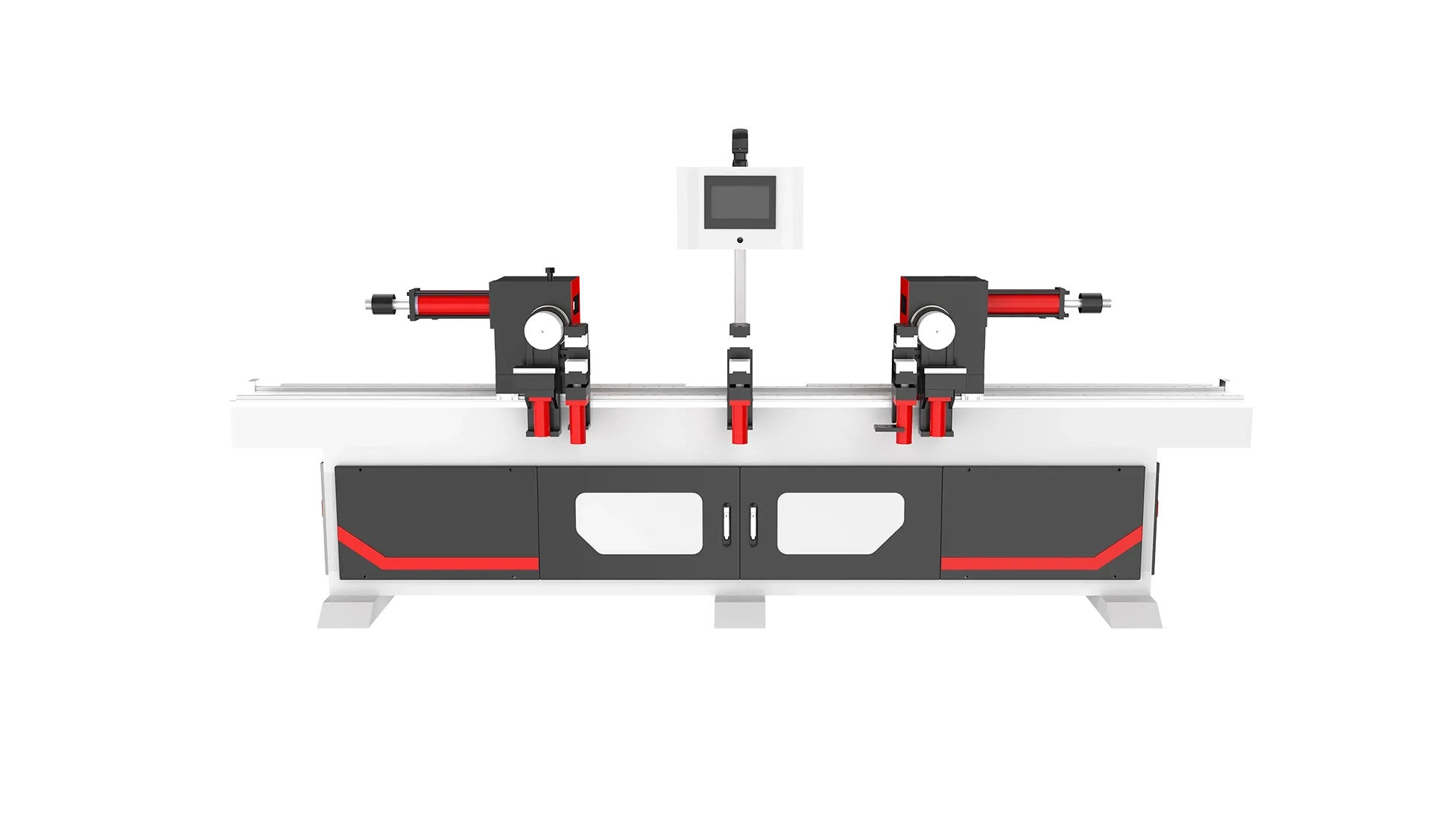

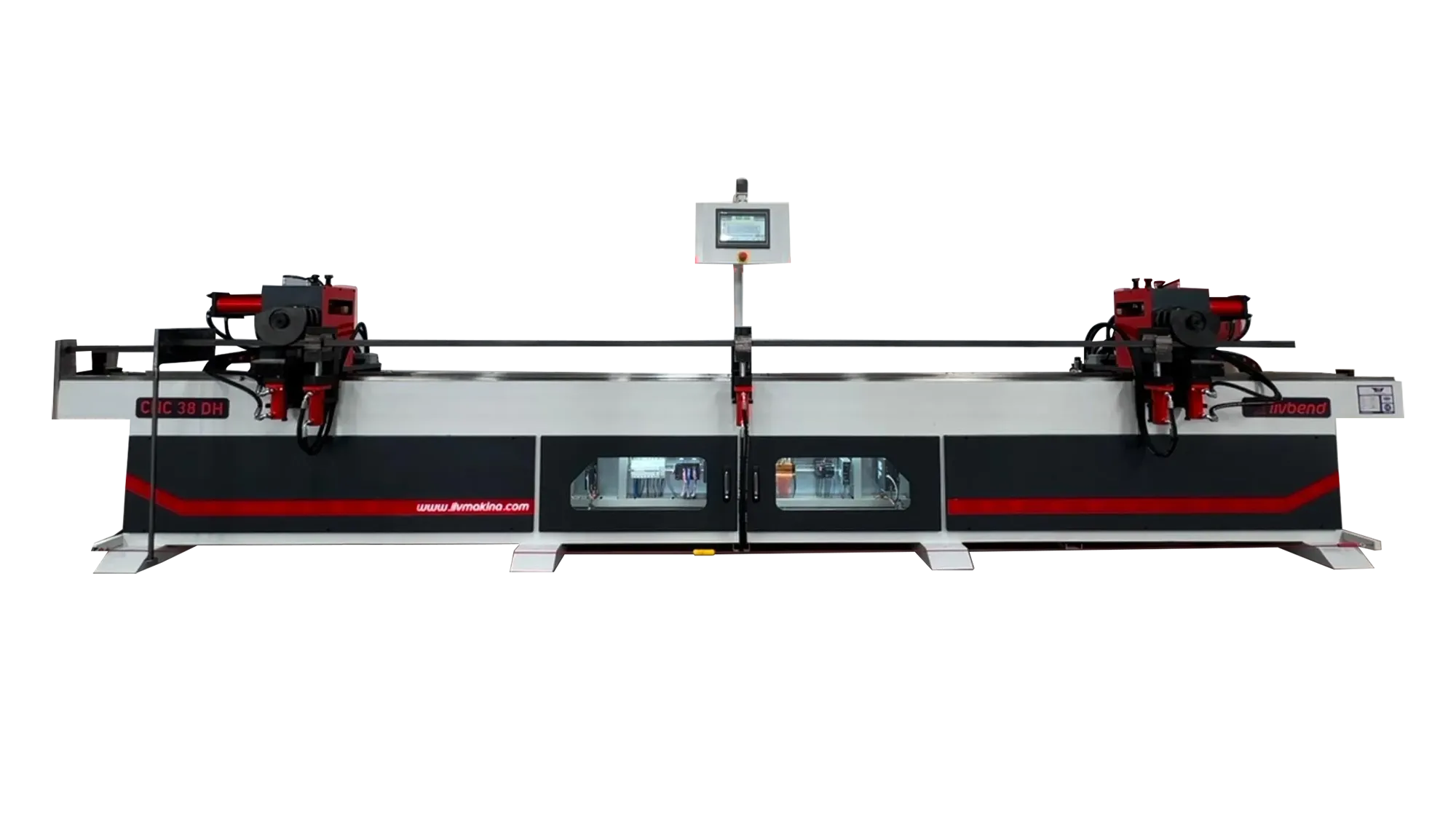

CNC Double Head Tube Bending Machine (TWIN Double 38 CNC)

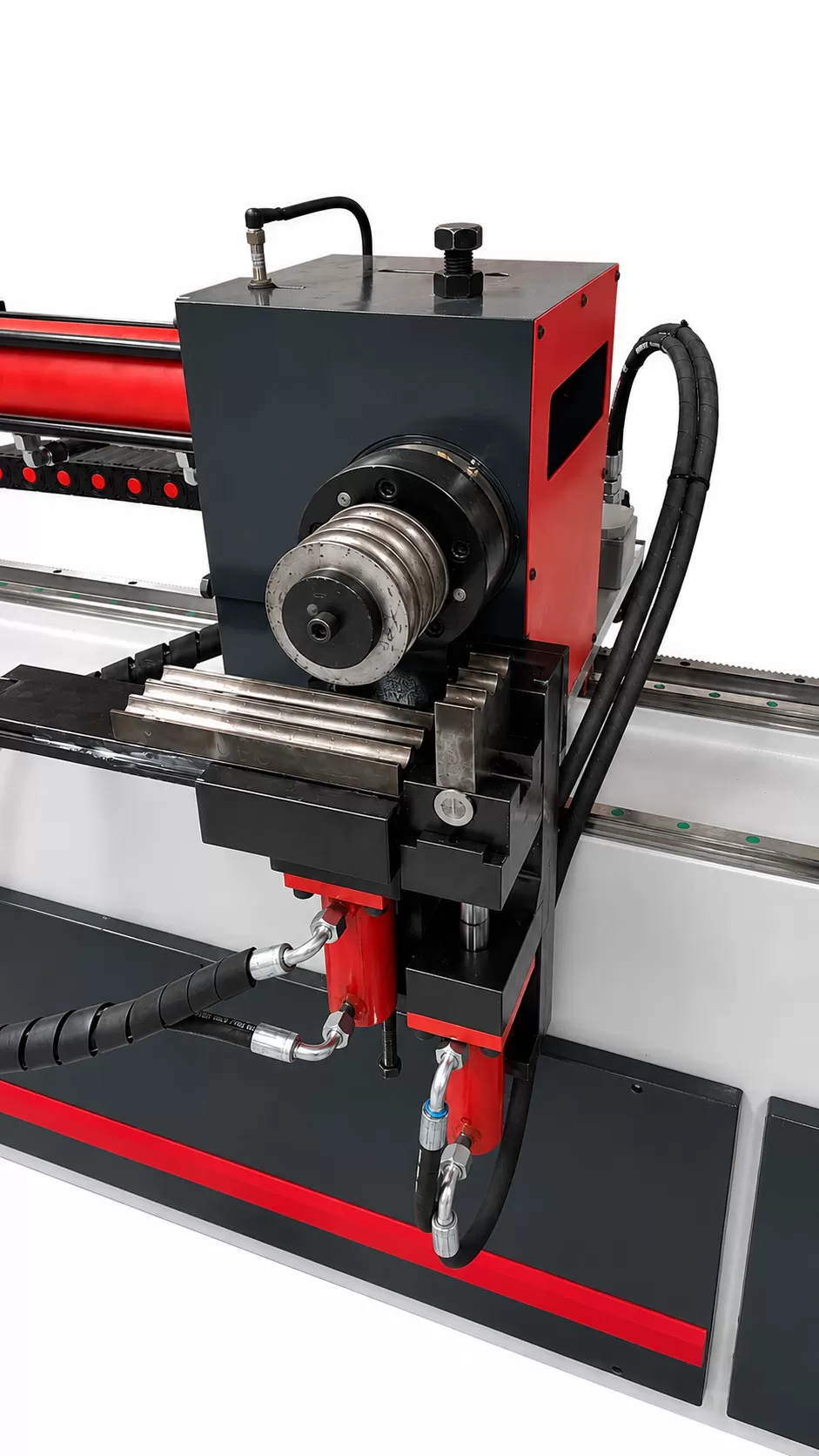

Our machine with 2 Servo Motors has the ability to make bending at the same or different times on both heads thanks to the heads that can move independently. Thanks to this feature, you can make narrow frame bends at a time without intervention.

Our machine with Automatic Distance Setting with Memory is 4 times faster than CNC Pipe Bending Machines.

Technical Specifications	TWIN Double 38 CNC
Max Bending Capacity	Ø38 mm x 2 mm
Min / Max Mold Size	90/220 mm
Material Process Length	350-4100 mm
Machine Sizes	5000x1500x1500 mm
Maximum Bending Angle	120°
Total Engine Power	10 Hp
Machine weight	1,6 Tons
